GASEXIT SPRUE BUSH JOINT
Sprue bush joint

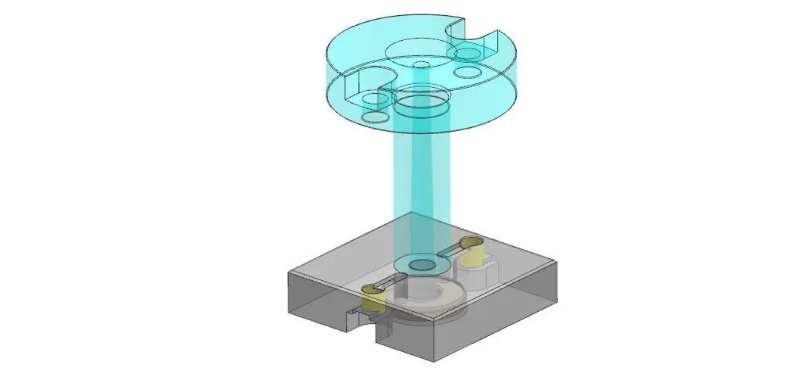

GASEXIT SPRUE BUSH JOINT is a product that connects to the tip of the sprue bush, allowing the gas to be exhausted from the parting line. It enables the efficient removal of gas over a wide area without being affected by the size of the sprue bush, resulting in a favorable cost-effectiveness ratio.
Features of GASEXIT SPRUE BUSH JOINT
feature 01
Cost-effectiveness UP
Available sizes range from: Φ18.5, Φ23.5, and Φ28.5.
Compared to the GASEXIT SPRUE BUSH, this product offers a cost-effective solution as it helps to keep the expenses lower.
It is particularly recommended for customers who have smaller sprue bush sizes or those who want to adopt GASEXIT as a standard component in the new molds.
feature 02
Additional runner shaping is possible
With the wide gas venting area, possible to modify the runner shape to ensure sufficient gas venting capability.
Additional modifications by adding ribs to the sprue base according to your specific requirements.
feature 03
Additional runner shaping is possible
Able to attach/detach from the P/L surface, easy for ventilation checks and maintenance procedures.
Features of GASEXIT SPRUE BUSH JOINT
| GSBJ | Q Porous part pore size |
L | a |
|---|---|---|---|
| SKD_HRC 48～52 |
|||
| 18.5 | 0.05 0.10 |
40 | Φ6 |
| 23.5 | 45 | Φ9 | |
| 28.5 | 50 | Φ12 |
Inquiries here regarding GASEXIT SPRUE BUSH JOINT
「GASEXIT SPRUE BUSH JOINT」helps reducing molding defects caused by gas and extend the maintenance cycle. If you're interested in GASEXIT SPRUE BUSH JOINT, please don't hesitate to contact us for inquiries or consultations.
